起订：10件
供应：10000件

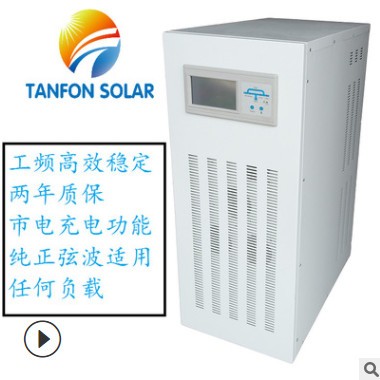

Capacity: 1KW--100KW
功率：1KW-100KW
1) super wide input voltage: 285V-475V
1）超宽电压：285V-475V
2) completely controlled by CPU, LCD automatic page turning display
2）CPU控制，LCD液晶显示
3) protection against output short-circuit; Against overload, and when you throw off its load, it will turn on the unit automatically.
3）输出短路保护，过载保护等。
4)working for single phase and three phase.
110V/220V single phase ;240v/380v/415V/440V option.
4）可以单相和三相工作，110V/220V单相，240v/380v/415V/440V（可选）
5) with charger built-in, its charging current is 10A----156A.
5）有市电充电功能
6) different DC voltage: 24V, 48V, 96V, 384V for optional
7）直流电压：24V, 48V, 96V, 384V（可选）
7) make it with 3 pcs PCB,it is more stable design.
7）新设计理念，由3块PCB板构造
8)this kinds inverter can take pump or lift,and other industrial use
8）可以带电梯等一切的感性负载
MODEL型号 | T1K | T3K | T5K | T10K | T15K | T20K | T30K | T60K | T100K | ||
Power功率 | 1KW | 3KW | 5KW | 10KW | 15KW | 20KW | 30KW | 60KW | 100KW | ||
Power Factor功率因数 | 0.8 | ||||||||||
Input 输入 | Phase相数 | 3 phase 4 wire and ground | |||||||||
Voltage Range 电压范围 | 220V ± 20%（3phase voltage） 380V± 20%(3 phase) | ||||||||||
Frequency Range频率 | 45 – 65Hz | ||||||||||
Rectifier整流 | 3 phase 6 pulses, 12 pulses is optional | ||||||||||
Output 输出 | Phase相数 | 3 phase 4 wire and ground | |||||||||
Wave form波型 | Pure sine wave | ||||||||||
Rated voltage 额定电压 | 217V/220V/380/400/415V optional + -1% for static load, 5% for fluctuant load | ||||||||||
Phase voltage setting 单相电压 | 200 - 244VAC, pls confirm when order | ||||||||||
Frequency 频率 | 50 / 60 Hz + / - 0.05% | ||||||||||
Total-harmonic distortion失真度 | < 3% linear load, < 5%( nonlinear load) | ||||||||||
Short circuit current 短路电流 | Short current for 0.1s (200% current) | ||||||||||
Overload capacity 过载能力 | Overload 125% for 10 Ms, 125%-150% for 1min. automatically resume when load become normal | ||||||||||
Battery 电池 | Battery电池 | Maintenance free lead-acid cell | |||||||||
DC Voltage 直流电压 | 96V/120V/192V | 384V | |||||||||
Max Charge Current最大充电电压 | 6-30A adjustable 可选择 | ||||||||||
Bypass 旁路 | Type类型 | Static state + manual maintenance bypass | |||||||||
Input Phase直流相数 | 3 phase 4 wire and ground 三相四线加地 | ||||||||||
Input voltage range输入电压范围 | 15% - 25% (the front control panel selectable) | ||||||||||
Transfer time 转换时间 | Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms | ||||||||||
Efficiency 效率 | Whole unit 整机 | > 85% | |||||||||
Inverter逆变 | 91 | 91 | 92 | 92 | 93 | 93 | 95 | 95 | 95 | ||
Communication interface 通信接口 | RS232 ( SNMP, modem optional ) | ||||||||||
