| 颜色 | 类蓝色 |
|---|---|
| 类型 | 单晶50W发电板 |
| 工作电压 | 17.3V |
| 短路电流 | 2.87A |
| 参考重量 | 3.8KG |
| 最大功率 | 50W |
| 电池数量 | 36Pcs |
| 产品认证 | TUV ROHS CE ISO |
| 开路电压 | 21.8V |
| 外形尺寸 | 630*540*30mm |
| 产地 | 广东 |
| 额定功率 | 50W |
| 工作电流 | 2.61A |
| 用途 | 太阳能发电 |
| 重量 | 3kg |
| 执行质量标准 | 欧标 |
| 品牌 | singfo-solar |
| 型号 | SFM5036 |
| 加工定制 | 是 |
| 系统电压 | 1000V |
| 质量认证 | CCC |

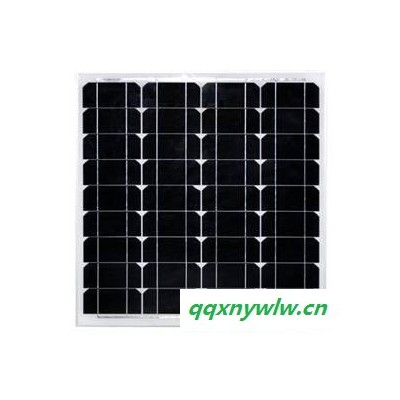

本公司供应晶硅组件singfo-solarSFM5036singfo-solar SFM5036 类蓝色 单晶50W发电板 17.3V 2.87A，质量保证，欢迎咨询洽谈。
◆ Highefficiency cell
◆ Strongaluminum alloy frame
◆ Standardtolerance (Guaranteed standard tolerance from -3~+3% ensures power output reliability)
◆ Excellentweak light performance
Excellent performance under low lightenvironments (mornings, evenings, and cloudy days)
◆ Withstand highwind and snow loads
Entire module certified to withstand highwind loads (2400 Pascal) and snow loads (5400 Pascal)
Electrical Characteristics
| Model No. | SFM-50W |
| Maximum Power at STC (Pmax) | 50W |
| Optimum Operating Voltage (Vmp) | 17.9 V |
| Open - Circuit Voltage (Voc) | 22.1V |
| Optimum Operating Current (Imp) | 2.79A |
| Short - Circuit Current (Isc) | 3.07A |
| Cell Efficiency | 17.8% |
| Operating Module Temperature | -40 °C to +85 °C |
| Maximum System Voltage | 1000 V DC (IEC) / 600 V DC (UL) |
| Diodes | 2 by pass |
| Power Tolerance | -3/+3 % |
STC: irradiance 1000 W/m2, module temperature25 °C, AM=1.5; Power measurement tolerance: ± 3%
| Solar Cell | Monocrystalline 125× 125 mm (5 inches) |
| No. of Cells | 36 (4*9) |

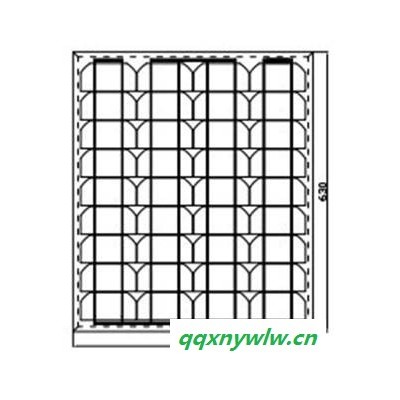

| Dimensions | 630*540*18mm |
| Weight | 3.8 KG |
| Front Glass | 3.2 mm (0.13 inches) tempered glass |
| frame | Anodized aluminum alloy |
| Junction Box | IP65 rated |
| Connectors | RADOX? SOLAR integrated twist locking connectors |
| Nominal Operating Cell Temperature (NOCT) | 45±2 ℃ |
| Temperature Coefficient of Pmax | -0.47%/℃ |
| Temperature Coefficient of Voc | -0.34%/℃ |
| Temperature Coefficient of Isc | 0.045%/℃ |
Qualityand Safety:
| Product warranty: |
| Singfo Solar modules will last for at least 25 years. |
| Free from defects in material and workmanship for 5 years. |
| All the panels passed IEC, TUV standards. |
| Power warranty: |
| Maintain more than 90% of minimum rated power for 10 years. |
| Maintain more than 80% of minimum rated power for 25 years. |
