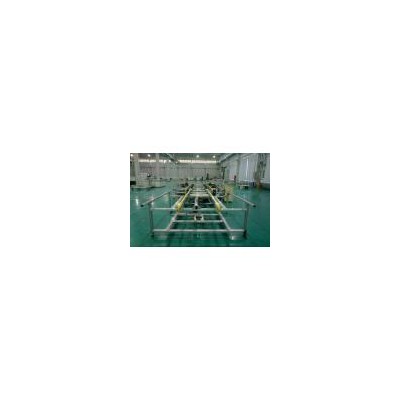

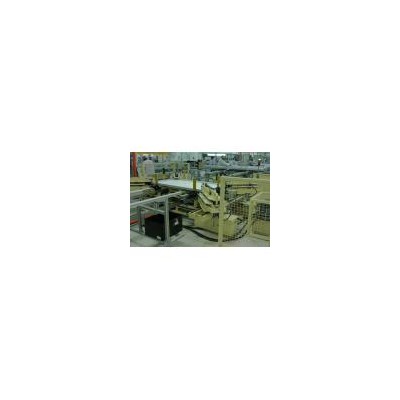

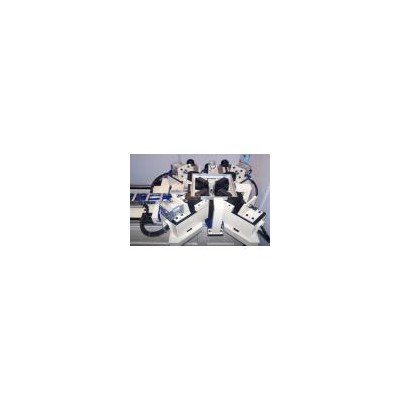

太阳能电池板组框机(ZK-2)

型号 Model

ZK-2

操作方式 Mode of operation

人工 Manual

***大组框外形尺寸（四角）

Maximum groupframe outside dimensions

(foursquare)

value="2000" tcsc="0" unitname="mm" w:st="on">2000mm X value="1100" tcsc="0" unitname="mm" w:st="on">1100mm X (35～50)mm

***小组框外形尺寸（四角）

Minimum groupframe outside dimensions

(foursquare)

750mm X 650mm X (35～50)mm

组框精度 Framing precision

对边尺寸之差

The tolerance of the oppose sides  ±value="1" tcsc="0" unitname="mm" w:st="on">1mm

对角线尺寸之差

Diagonal size of the difference  ±value="1.5" tcsc="0" unitname="mm" w:st="on">1.5mm

四角角度偏差

Angular deviation of four square  ±0.5°

气压动力 Air pressure drive

组框、气动锁 Framing，Pneumatical lock

液压动力 Hydraulic pressure drive

液压刀 Hydraulic pressure knife

气源压力Airsupply pressure drive

0.4Mpa～0.7 Mpa

液压压力 Hydraulic pressure

1.0Mpa～15.0 Mpa

输入电源 Input power

AC 380V

功率 Capacity factor

1.5KW

***大外形尺寸

Maximum outside demensions

2900mm X 1900mm X 970mm

重量 Weight

1200Kg
